Manufacturer | Model | Type | I/O | Battery | Communication Methods |
---|---|---|---|---|---|

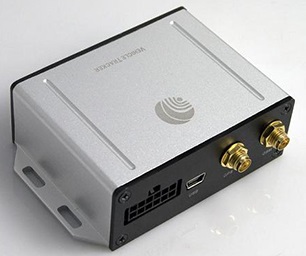

Bofan | PT510 | GPS | 5/3 | Yes - Internal Battery | Frecuencia GSM GSM 850/900/1800/1900 MHz |
Weight 150 g (for main device only, without accessories)
Dimensions 72 (L) x 53 (W) x 27 (H) mm
Input voltage DC 9V ~ 36V / 1.5A
Backup battery 600mAh / 3.7v
Power consumption 50 mA standby current
Operating temperature range -10 ° C to + 60 ° C
Storage temperature range -20 ° C to + 70 ° C
Humidity Up to 75% non-condensing
Backup battery working time 8 ~ 12 hours depending on the preset reporting interval
GSM frequency GSM 850/900/1800/1900 MHz
GPRS Multi-slot Class 8 (4Rx, 1Tx, 5 max slots)
Supports 4 encoding schemes (CS-1, CS-2, CS-3, and CS-4)
Maximum download speed is 85.6 kbps
Maximum upload speed is 21.4 kbps
GPS chip u-blox 6
GPS sensitivity -162dBm
GPS channels 50 channels
Cold start 29 seconds
Hot start 27 seconds
Warm start <1 sec
Positioning accuracy 10 meters in 2D RMS
External GPS antenna
External GSM antenna
GPS LED and GSM LED
Memory Save 16,000 waypoints
Motion sensor yes
I / O 5 digital inputs, 3 negative triggers and 2 positive; 2 outputs
AD 2 channels * 12 bits
Certificate CE, FCC, RoHS
