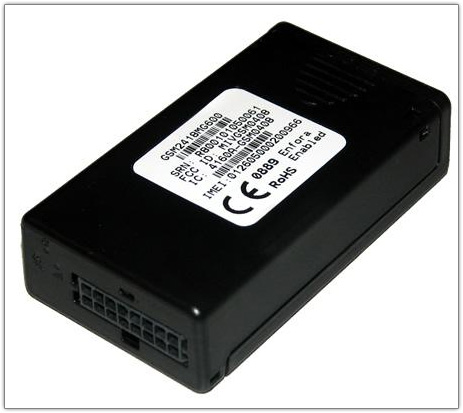

Tt8950 Enfora

TT8950 Economic and with great features, this quad-band equipment equipped with a 3-axis accelerometer has been improved with a 16-pin connection of multiple input and output connections that include two analog inputs, polygonal geo-fence capability, and much more. Optimized for the mass market, capture and control driving behavior with alerts for rapid acceleration, harsh braking, speeding, and excessive heating. With an optional battery for communication when device power is lost, it demonstrates results in a wide variety of market segments such as telematics, driver profiling and vehicles, theft recovery, fleet management, etc. includes two analog inputs, polygonal geo-fence capabilities, and much more.

Specifications

Manufacturer Model Type I/O Battery Communication Methods
Enfora TT8950 Rastreador de Vehículos 3/3 Yes - Internal Battery GSM / GPRS

Features

  • Dimensions: (L x W x H) 82 x 46 x 21 mm
  • GSM/GPRS Class B Radio, Multislot 8
  • Frequencies (MHz): 850/900/1800/1900
  • Accelerometer: Three-axis digital
  • GPS Protocols: NMEA, Binary
  • I/O Connector: 16-pin molex connector
  • USB connector for programming
  • 1 Digital input
  • 1 Analog input (0-16V)
  • 1 Input configurable as analog or digital
  • 2 Digital outputs
  • 1 Latched output (saves the last state)
  • Ignition sensor
  • Audio connection
  • Operating voltage: 9 - 16 V

TT8950

Requirements

See the complete documentation
TT8950

Programming

See the complete documentation
TT8950

SMS Programming

See the complete documentation
TT8950

Commands

See the complete documentation
