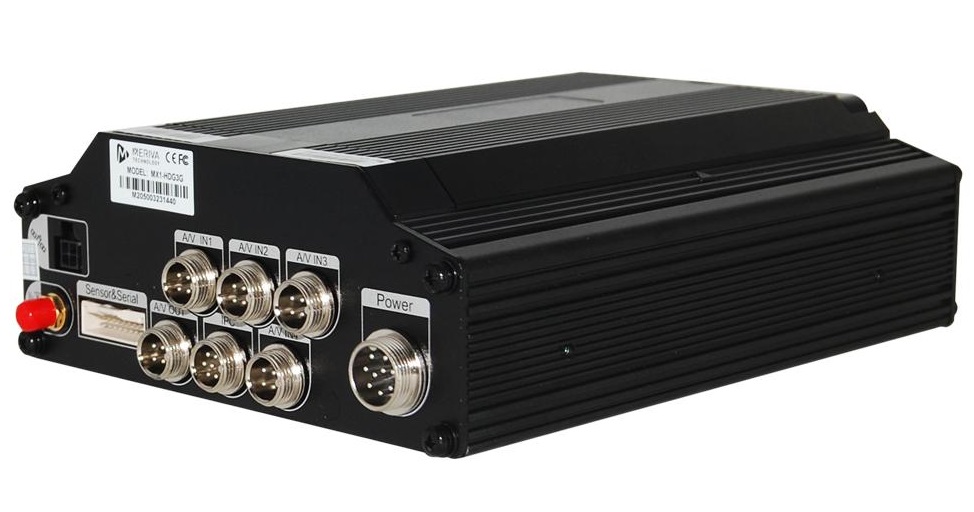

MDVR MOBILE AHD MERIVA TECHNOLOGY MX1-HDG3G HYBRID The MX1-HDG3G is a 5CH 1080P (4 DIN 1IP) Hybrid DVR designed for long-haul vehicle surveillance solutions that features AHD technology, which allows for high-resolution and delay-free video. It incorporates the most advanced H.265 video processing technology for compression and decompression, and integrates 3G network connectivity and GPS positioning. Features: 1080P recording resolution. Supports AHD 1080P analog and Meriva Mobile IP cameras. Supports alarm inputs and outputs (with alarm cable accessory). SIM port for 3G communication. 3G and GPS module. LAN/IP-Cam port. Recording on hard disk G-Sensor.
| Manufacturer | Model | Type | I/O | Battery | Communication Methods |
|---|---|---|---|---|---|
| Meriva | MX1HDG3G | DVR Movil | 8/2 | No - Power Supply |
4CH AHD 1080P/Analog Video Inputs, DIN4
1CH 1080P ONVIF IP Video Inputs, DIN6
1CH A/V Video Outputs, DIN4
4CH Analog + 1CH IP Audio Inputs
1CH A/V Audio Outputs, DIN4
H.265 Recording Codec
Recording Resolution 1080P@15FPS / WD1-D1-CIF@30FPS
Recording Type Manual/Ignition/Alarm/Calendar
Mirror/Dual Recording Yes COMMUNICATION AND STORAGE
IP CAM Yes x1, DIN 6 pins
Wifi Not available
GPS Yes x1, RP-SMA
3G Yes x1, RP-SMA EVDO/WCDMA/TDD-LTE/FDD-LTE
HDD Storage Yes x1 SATA, 2TB Max
SD Card Storage N/A
USB Yes x1, USB 2.0 (mouse, memories)
TCP/IP Yes x1, 100Mbps, IPCam (requires accessory)
SIM Yes x1, 2FF
Serial x1 RS232
G-Sensor 3-axis Inertia Sensor X-YZ
Alarms 8 inputs / 2 Outputs (requires accessory)
POWER AND OPERATION Power Supply 8 ~ 36 VDC
Alarm Output 5VDC@1000mA
Maximum Consumption 32 Watts
Dimensions 206x170x70.5mm
Weight 1.24 Kg
Operating Temperature -40°C ~ 70°C
Operating Humidity 8% ~ 90%
Operation Control Panel, Network, Mouse Remote Control
